TIZE Outdoor Ultrasonic Dog Bark Control Device Upgraded 5 Frequency 15-30KHz

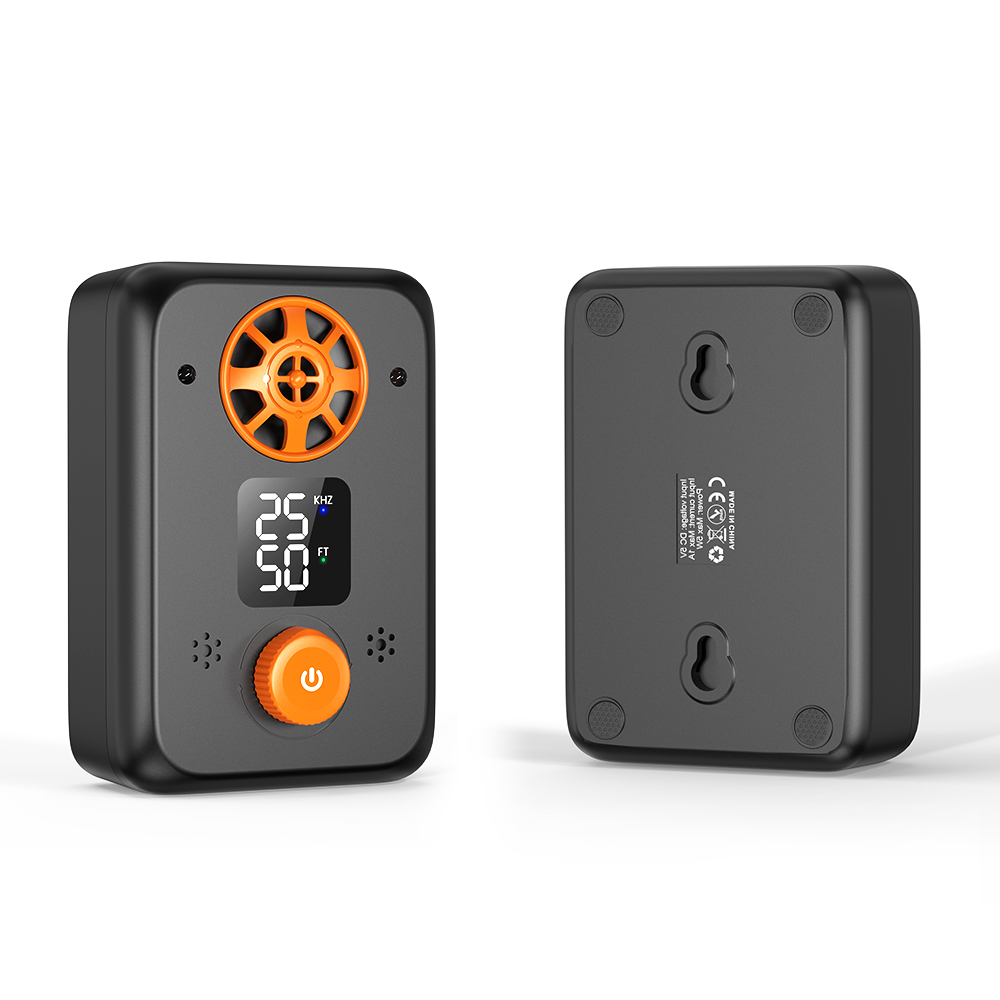

【Ultrasonic Dog Bark Control U57 Product Appearance】

• Designed by R&D Team.
• Registered Domestic & Foreign Patents;
• Adopts variable frequency/fixed frequency ultrasonic technology;
• Built-in LED screen displays frequency and distance;
• 5 frequency ultrasonic modes;
• 3 barking detection ranges (up to 15, 30, and 50 feet);
• For indoor and outdoor use;

【Ultrasonic Dog Bark Control Device U57 Working principle】

When the device is turned on, it automatically emits high-frequency ultrasonic waves upon detecting dog barking within the set range (5 M, 10M, 15M). These ultrasonic waves stimulate the dog's eardrums and make the dog uncomfortable.

The device stops emitting ultrasonic waves when the dog stops barking. After repeating this process several times, the dog will realize that the discomforting sound usually occurs after its own barking. As a result, the dog will stop barking on its own.

【Ultrasonic Dog Bark Control U57 Knob switch introduction】

knob switch operation:

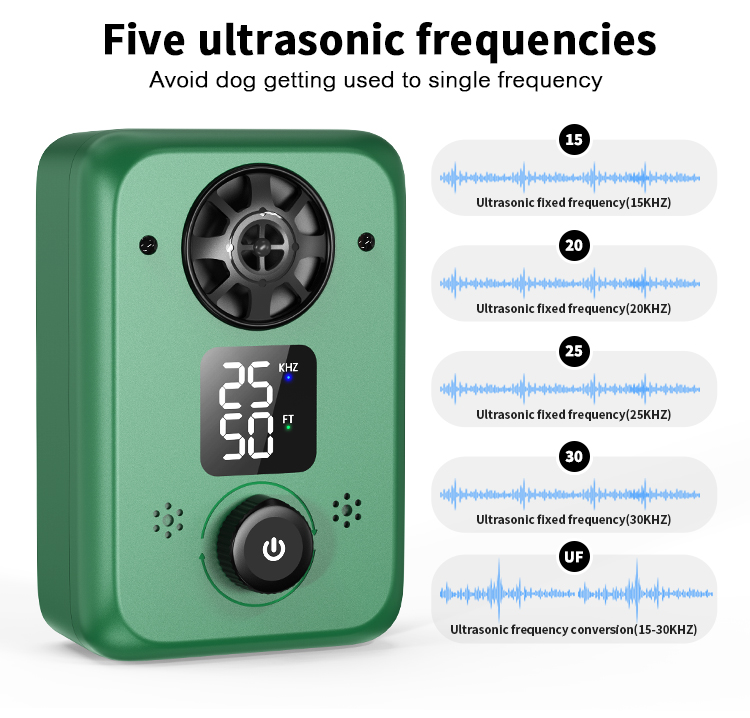

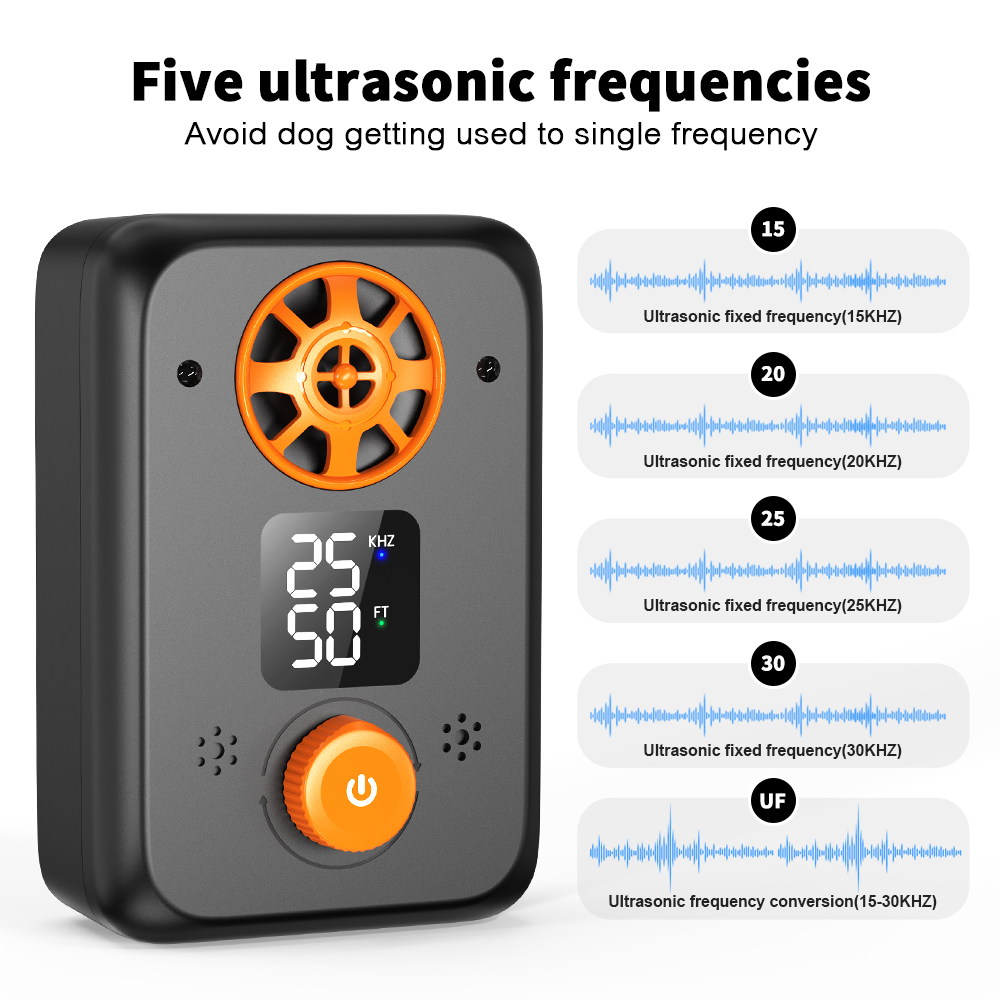

• Mode 1/2/3/4:"15,""20,""25,"and"30" indicate that the device is set to a fixed ultrasonic frequency of 15KHz/20KHz/25KHz/30KHz respectively.

• Mode 5:"UF" indicates that the device is set to a variable ultrasonic frequency mode with a range of 15-30KHz.

• Range 1: “15” indicates the device is set to detect dog barking within 15 feet/5 meters.

• Range 2: “30” indicates the device is set to detect dog barking within 30 feet/10 meters.

• Range 3: “50” indicates the device is set to detect dog barking within 50 feet/15 meters.

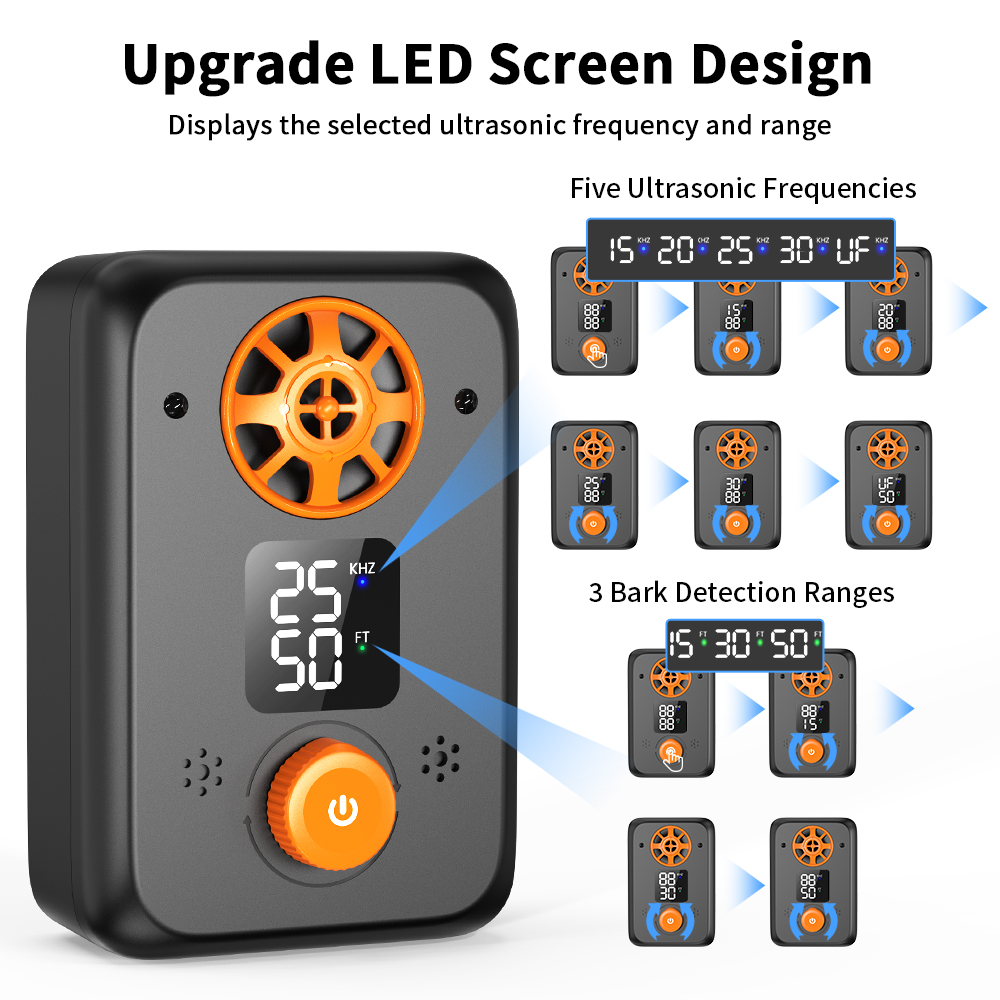

【LED Screen introduction】

A.When the device is turned on by pressing the knob switch for 2s, the screen will light up.

B. When you press the knob switch once, the blue LED flashes, indicating that the device has entered ultrasonic frequency selection mode. Turn the knob to select the required value (25, UF), and then press once to confirm or it will be automatically confirmed after 5 seconds of no operation.

C.When press the knob switch twice, the green LED flashes, indicating that the device has entered range setting mode. Rotate the knob to select the required value (15, 30, 50), then double-press to confirm or it will be automatically confirmed after 5 seconds of no operation.

D. If there is no button operation within 10 seconds, the screen will automatically light off , and press or turn the switch to reactivate it.

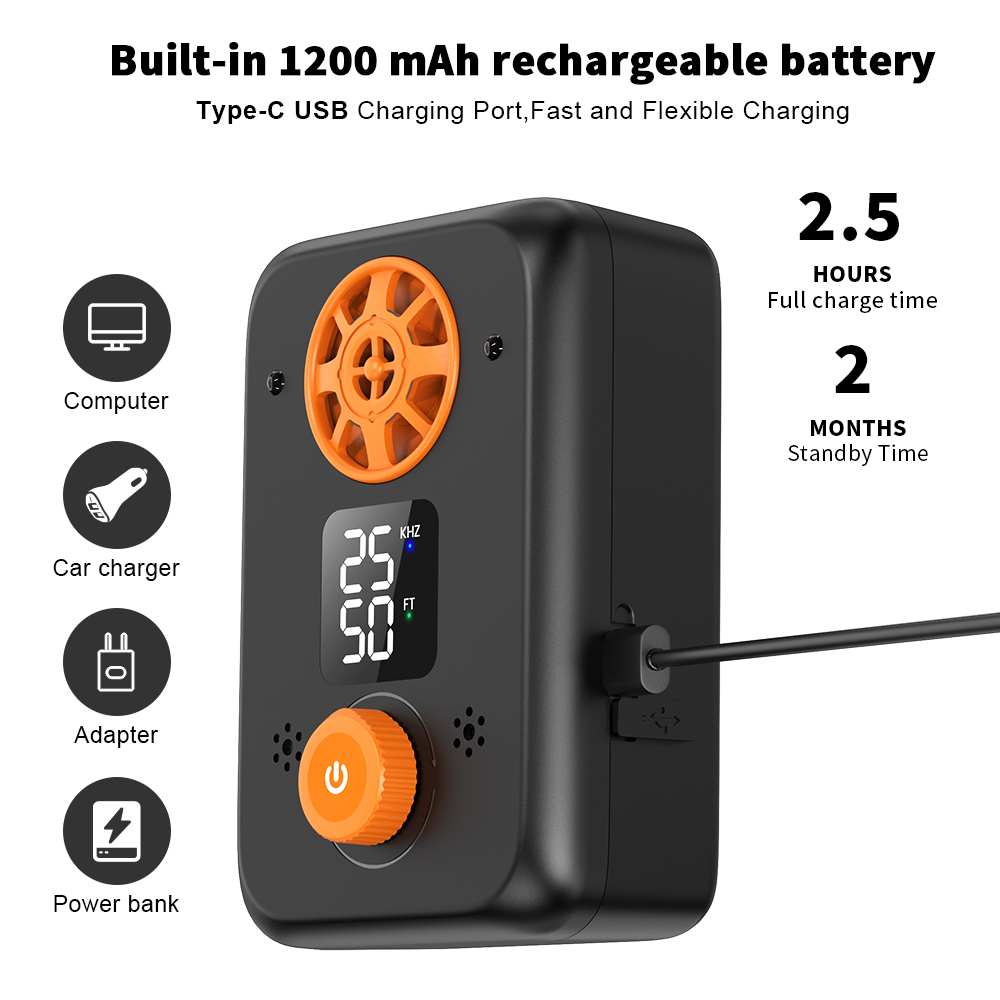

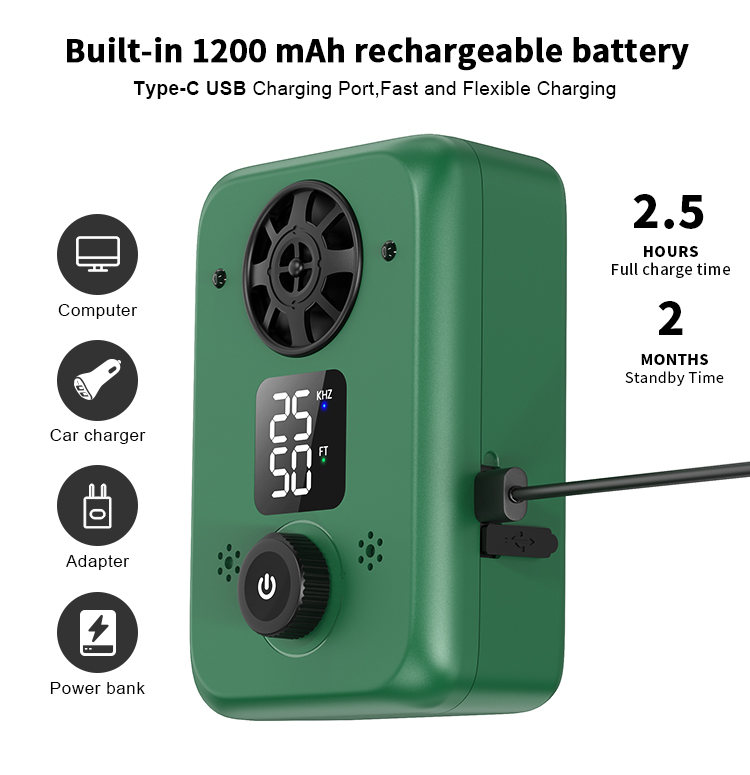

【Battery Introduction】

• Battery Capacity: 1200 mAh
• Charging Method: Type-C_5V
• Charging Time: 2.5 Hours
• Standby Time: 60 Days
• Fixed frequency ultrasonic mode duration: 25 hours
• Variable frequency ultrasonic mode duration: 25 hours

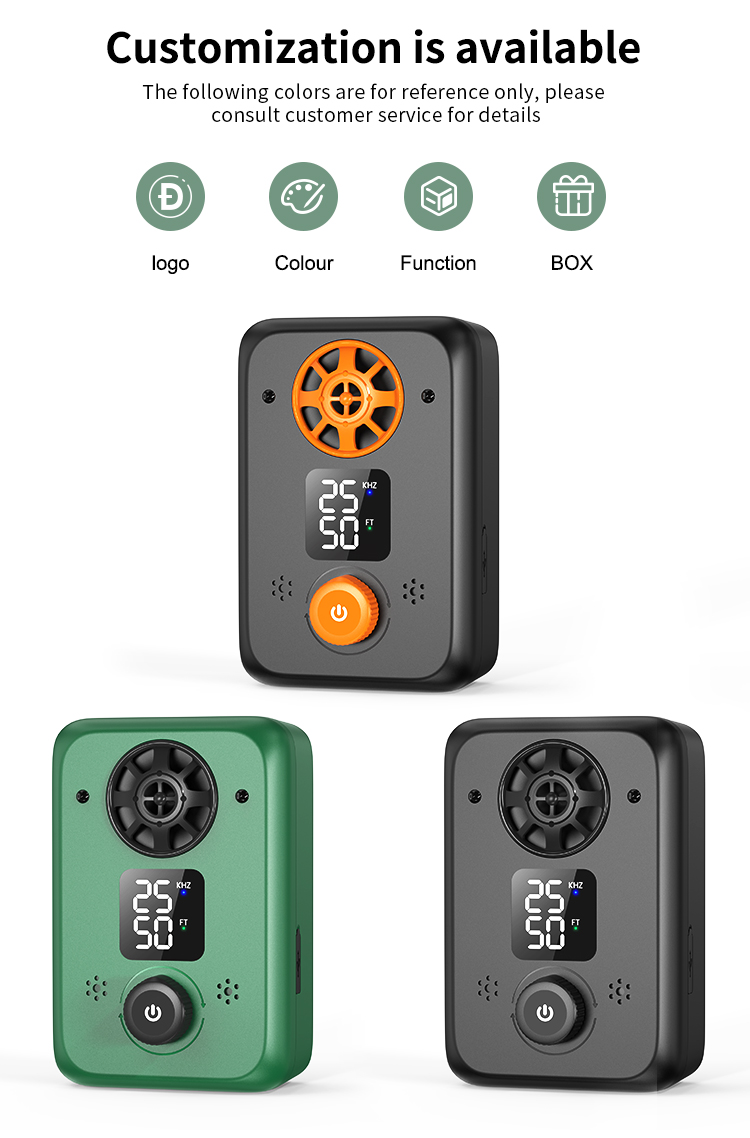

TIZE Outdoor Ultrasonic Dog Bark Control Customization Service

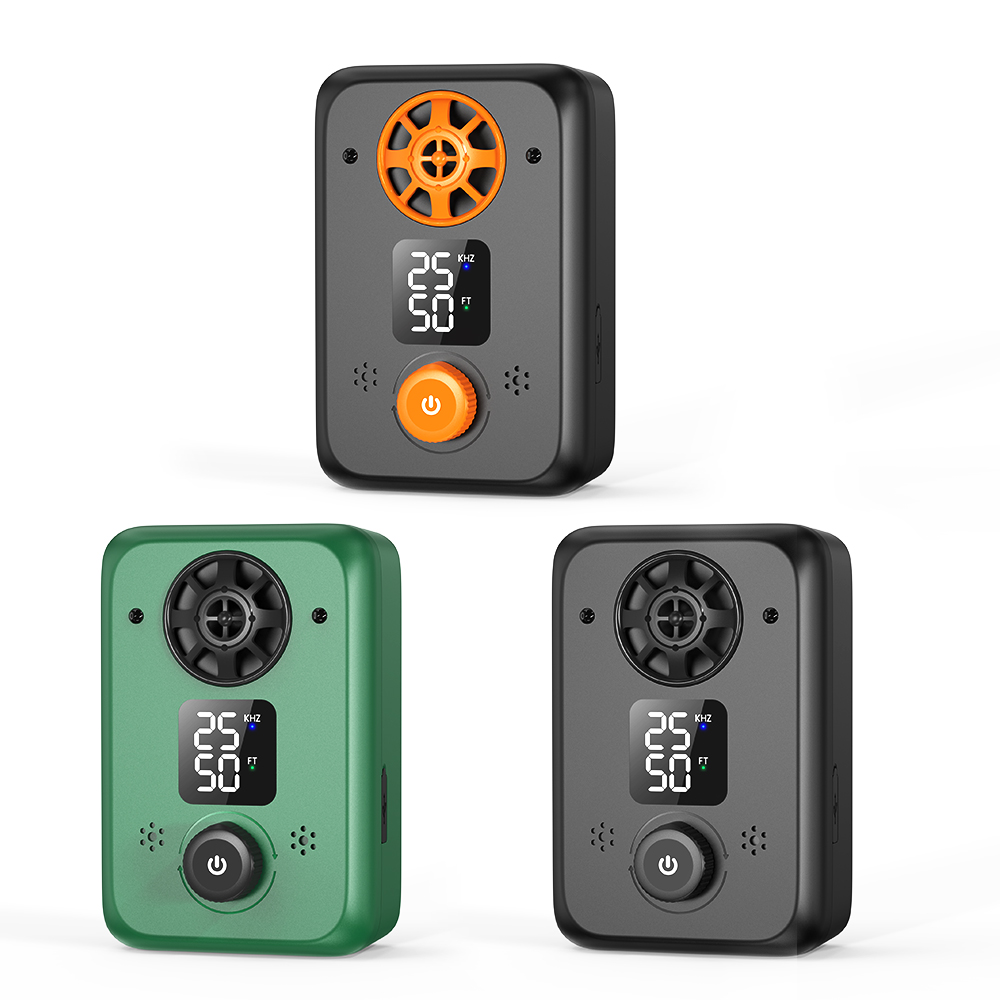

Standard Color: Black Orange, Green Black, All Black

You can customize any colors you want and just need to provide the corresponding pantone color number.

Additionally, we offer custom services for logos, webbing, packaging, and more.

For more customized information, please Contact us.
